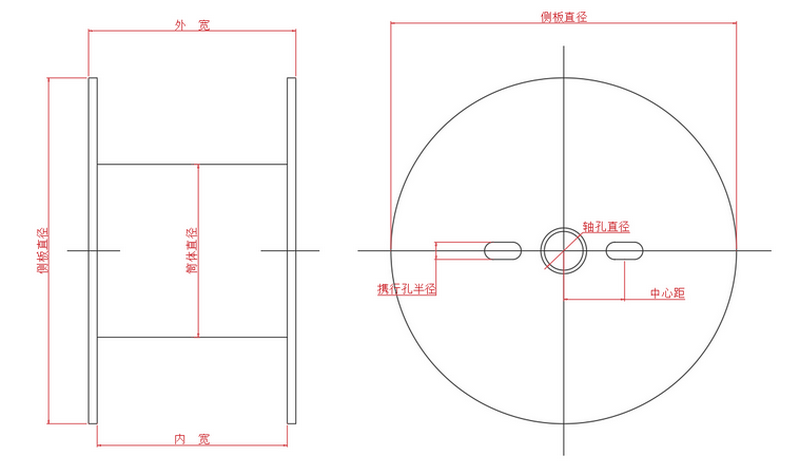

國標線盤尺寸參考

PN250

250

100

180

210

25/30/37

7.5

PS/ABS

PN300

300

160

250

280

40

7.5

PS/ABS

PB300

300

217

270

290

125

Ф18

平板

PN315A

315

130

160

190

25/30/40

9

PS/ABS

PN315B

315

130

220

250

25/30/40

9

PS/ABS

PN350

350

160

250

290

30/40

9

PS/ABS

PN400A-1

400

200

121

155

40/56/70

10

ABS

PN400A-2

400

200

250

300

40/56/70

10

ABS

PN400A-3

400

200

265

300

40/56/70

10

ABS

PN400A-4

400

200

280

312

40/56/70

10

ABS

PN400B-1

400

200

250

290

40/56/70

10

ABS

PN400B-2

400

200

265

305

40/56/70

10

ABS

PN400B-3

400

200

280

320

40/56/70

10

ABS

PB400

400

217

250

270

70

Ф16

平板

PN500A-1

500

250

250

300

40/56/80

12.5

ABS

PN500A-2

500

250

280

320

40/56/80

12.5

ABS

PN500A-3

500

250

315

375

40/56/80

12.5

ABS

PN500B-1

500

250

250

300

40/56/80

12.5

ABS

PN500B-2

500

250

315

375

40/56/80

12.5

ABS

PN500C-1

500

250

250

305

40/56/80

12.5

ABS

PN500C-2

500

250

315

375

40/56/80

12.5

ABS

PN500D

500

320

200

250

40/56/80

12.5

ABS

PB500

500

217

300

320

70

Ф20

平板

PN630A-1

630

250

315

375

56/80

12.5

ABS

PN630A-2

630

250

415

475

56/80

12.5

ABS

PN630B-1

630

315

315

375

56/80

12.5

ABS

PN630B-2

630

315

415

475

56/80

12.5

ABS

PB630

630

357

400

475

125

Ф28

平板

PN800A-1

800

315

415

500

80/127

15

ABS

PN800A-2

800

400

500

600

80/127

15

ABS/瓦楞

PN800A-3

800

315

530

600

80/127

15

ABS

PB800

800

400

500

536

127

Ф40

平板

PN1000

1000

500

630

710

80/127

20

ABS

PN1000

1000

500

630

750

80/125

40*80

瓦楞

PN1250

1250

630

800

950

80/125

40*80

瓦楞

PN1400

1400

710

900

1060

80/125

70*130

瓦楞

PN1600

1600

800

1000

1180

80/125

70*130

瓦楞

PN1800

1800

1000

1120

1320

100/125

70*130

瓦楞

PN2000

2000

1120

1250

1500

125

70*131

瓦楞
